摘要：本文介紹了安科瑞多功能電能表在老撾某項目的應用。AMC系列交流多功能儀表是一款專門為電力系統、工礦企業、公用事業和智能建筑用于電力監控而設計的智能電表。

  Abstract：This article introduces the application of the multi-function energy meter in a project in Lao PDR.AMC series AC multi-function meter is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings.

  1.項目概述  Project Overview

  老撾某項目需要一批多功能可編程電力儀表，丹麥客戶多方面對比后，認為我司AMC系列可編程儀表功能豐富，易于安裝，性價比高，決定采用我司電力儀表。

  A project in Lao PDR required a batch of multi-function and programmable power meters. After comparing various aspects ,Denmark customer thought that our AMC series programmable power meter are rich in functions, easy to install, and cost-effective，so they decided to use our power meters.

  2.產品介紹 product presentation

  AMC系列網絡電力儀表具有全電參量測量，例如單相或三相電流，電壓，有源電源，無功功率，表觀功率，頻率，功率因數。它還有電能統計，事件記錄，諧波測量及網絡通訊等功能。

  AMC series meters integrate measurement of full electric parameters, such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor. It also has functions of energy statistics, event record,harmonic measurement and network communications.

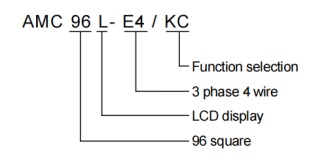

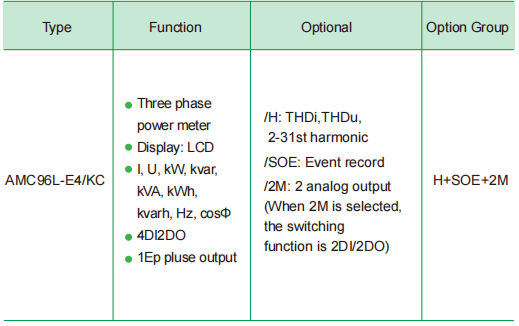

  3.型號說明 Model Description

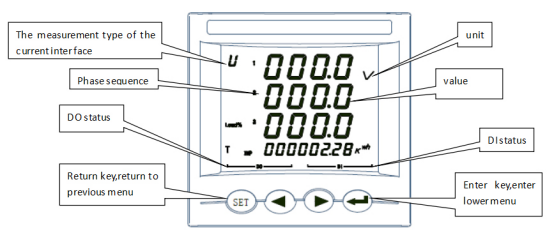

  4.功能 Function

  5. 技術參數Technical Parameters

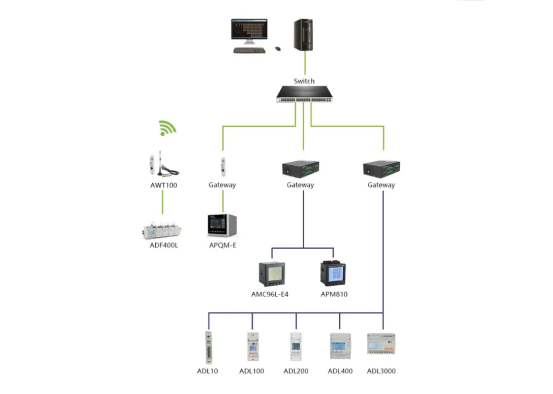

  6. 組網拓撲圖 Network Topology

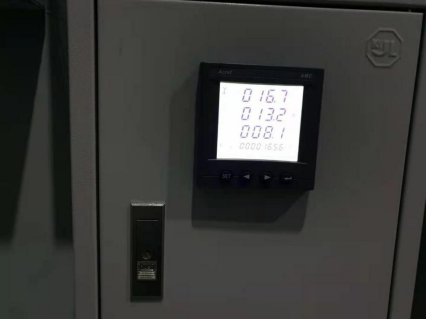

  7.安裝圖片Installation Picture

  參考文獻 Bibliography

  1.Solutions for enterprise micro-grid system 2021.04
